- 1500W built on 3 independent programmable channels - max 500W per output channel
- Programmable output settings – Voltage 250~500Vdc & current 500~1400mA
- DALI-2 – DiiA certified driver
| Model Name |
Phase |
PFC |
Output Voltage |
Output Current |
Output Power |
Input Voltage Range |
Dimensions (L x W x H) |
Download datasheet |
| EUCO-1K4200GDA |
Phase I |
|
150 - 550V |
2A |
1400W |
198-440Vac |
500 x 152 x 77 mm |
|
| EUCO-1K4200GIA |
Phase I |
|
150 - 550V |
2A |
1400W |
198-440Vac |
500 x 152 x 77 mm |
|

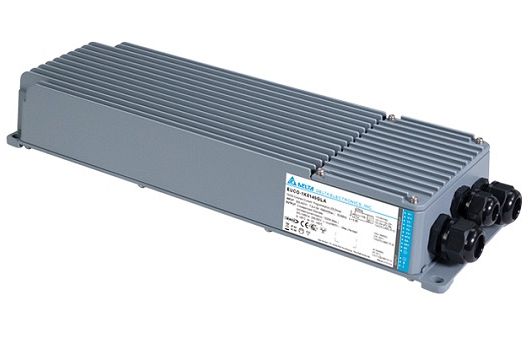

| EUCO-1K5140GLA |
Phase I |
|
360V |
1.4A |
1500W |
198-440Vac |
500 x 152 x 77 mm |
|
| EUCO-2K1200GDA |
Phase I |
|
250 - 550V |
2A |
2100W |
198-440Vac |
500 x 152 x 77 mm |
|
| EUCO-2K1200GIA |
Phase I |
|
250 - 500V |
2A |
2100W |
198-440Vac |
500 x 152 x 77 mm |
|

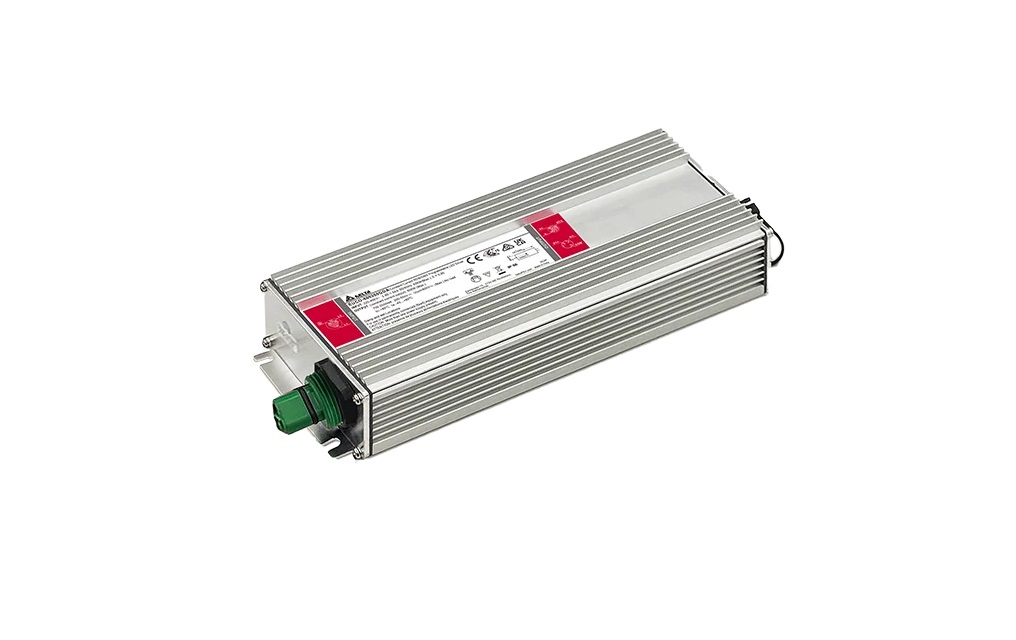

| EUCO-600200GDA |
Phase I |
|
200 - 550V |
2A |
600W |
198-440Vac |
315 x 100 x 49 mm |
|
| EUCO-600200GIA |
Phase I |
|
200 - 550V |
2A |
600W |
198-440Vac |
315 x 100 x 49 mm |
|
