- 24 VDC constant voltage design
- High efficiency and reliability
- Wide operating temperature range
- IP67 waterproof rating for outdoor use
- Enhanced short-circuit protection against fire
- 10mm elevated for indoor use
| Model Name |
Phase |
PFC |
Output Voltage |
Output Current |
Output Power |
Input Voltage Range |
Dimensions (L x W x H) |
Download datasheet |

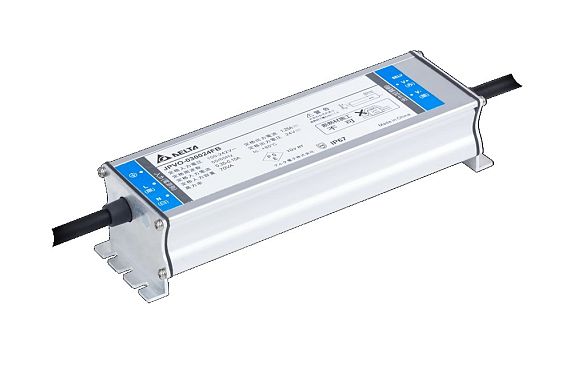

| JPVO-030024FB |
Phase I |
|
24V |
1.25A |
30W |
90-266Vac |
200 x 60 x 44.5 mm |
|
| JPVO-060024FB |
Phase I |
|
24V |
2.5A |
60W |
90-266Vac |
200 x 60 x 44.5 mm |
|
| JPVO-100024FB |
Phase I |
|
24V |
4.17A |
100W |
90-266Vac |
220 x 60 x 44.5 mm |
|
| JPVO-150024FB |
Phase I |
|
24V |
6.25A |
150W |
90-266Vac |
240 x 60 x 44.5 mm |
|
