LNA Arena Sport - Switch-Mode

The Series is the extended version of the EUCO Arena Sport Series, which is specifically designed for the European market and gained huge success there. The LNA Arena Sport Series features 1,200 W, 1,650 W and 1,800 W outputs. It conforms to both DALI-2 & D4i and RDM/DMX protocols, suitable for smart lighting solutions.

usci

Model Name	Phase	Output Voltage	Output Current	Output Power	Input Voltage Range	Dimensions (L x W x H)
LNA-1K2B20ABFGB	Phase I	150 - 550V	2A	1200W	187-528Vac	500 x 152 x 77 mm
LNA-1K2D12ABFGB	Phase I	50-370V	1.2A	1200W	187-528Vac	500 x 152 x 77 mm
LNA-1K6C20ABFGB	Phase I	150 - 550V	2A	1650W	187-528Vac	500 x 152 x 77 mm
LNA-1K8C20ABFGB	Phase I	150 - 550V	2A	1800W	187-528Vac	500 x 152 x 77 mm
LNA-600A20AFCDA	Phase I	200 - 550V	2A	600W	198-440Vac	285 x 100 x 49 mm
LNA-600A20AFCFA	Phase I	200 - 550V	2A	600W	198-440Vac	285 x 100 x 49 mm

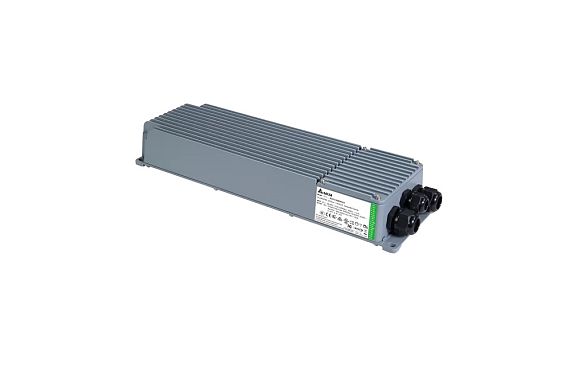

LNA-1K2B20ABFGB

LNA-1K2D12ABFGB

LNA-1K6C20ABFGB

LNA-1K8C20ABFGB

LNA-600A20AFCDA

LNA-600A20AFCFA
