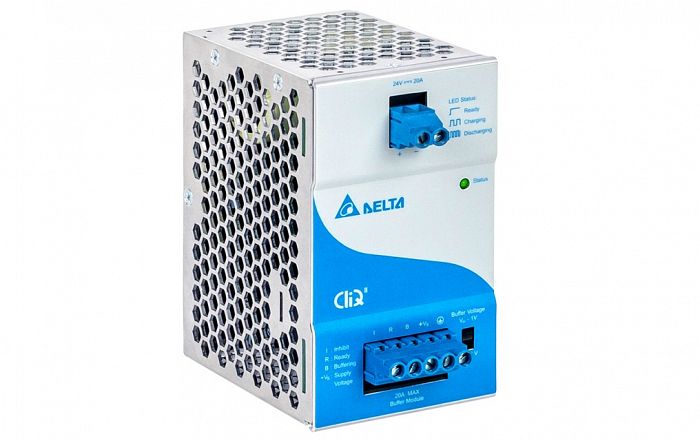

Delta Buffer Module
DRB-24V020ABN
Full corrosion resistant Aluminium chassis. Long minimum buffering time of 250ms @ 24V/20A. Can connect in parallel to increase buffering time. Charging time of < 30 seconds. IP20 Compliant. Overvoltage / Overcurrent / Short Circuit Protections. Meets worldwide safety requirements. RoHS Directive 2011/65/EU Compliant. Reliable design, with expected life of 10 years.
Main specifications drb-24v020abn:
Nominal Input Voltage: 24Vdc
DC Input Voltage Range: 22.8-28.8Vdc
Input Current: Charging Mode : < 0.6A
Discharging Mode : 20A Max
Input Power (Standby Mode): 2.5W Average
Nominal Output Voltage: 24Vdc typ. (depends on Vin)
Nominal Output Current: 20A
Buffering Time: 250ms Min @ 24V/20A Load, > 5sec Min @ 24V/1A Load
Parallel Connection: Yes
Dimensions (L x W x D) : 121 x 70 x 120.1 mm
Dimensions (L x W x D) : 4.76" x 2.76" x 4.73"
Unit Weight : 0.76 kg (1.68 lb)
