Delta Chrome series

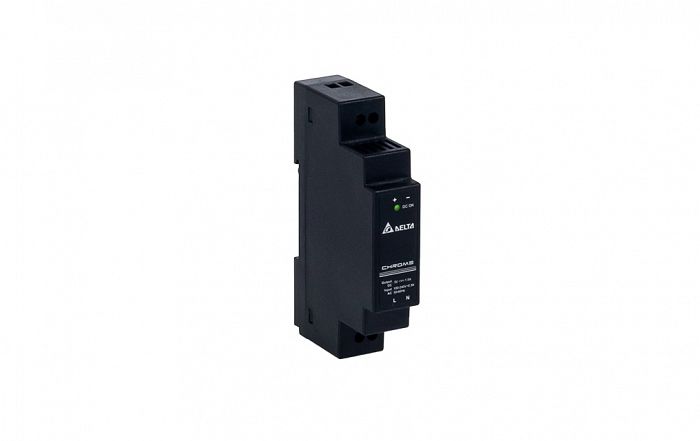

DRC-5V10W1AZ
Protection Class II, Double Isolation (No Earth connection is required). Universal AC input voltage and full power up to 55°CPower will not de-rate for the entire input voltage range. Efficiency > 78% @ 115Vac. NEC Class 2 / Limited Power Source (LPS) certified. Overvoltage / Overcurrent / Over Temperature Protections.
main specifications DRC-5V10W1AZ:
Input Voltage Range: 90-264 Vac
Input Frequency Range: 50-60 Hz
Nominal Output Voltage: 5 V
Output Voltage Adjustment Range: 4.75-5.25 Vdc (No potentiometer)
Nominal Output Current: 1.5 A
Output Power: 17 W
Dimensions (L x W x D) : 91 x 18 x 55.6 mm
Dimensions (L x W x D) : 3.58" x 0.71" x 2.19"
Unit Weight : 0.06 kg (0.13 lb)
