Delta Chrome series

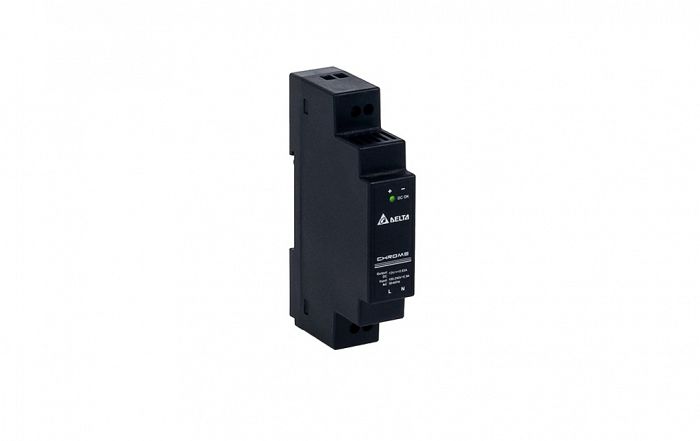

DRC-12V10W1AZ
Protection Class II, Double Isolation (No Earth connection is required). Universal AC input voltage and full power up to 55°C. Power will not de-rate for the entire input voltage range. Efficiency > 82.0% @ 115Vac & 230Vac. NEC Class 2 / Limited Power Source (LPS) certified. Overvoltage / Overcurrent / Over Temperature Protections.
main specifications DRC-12V10W1AZ:
Input Voltage Range: 90-264Vac ( 125-375Vdc )
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Nominal Output Current: 0.83A
Output Power: 10W
Dimensions (L x W x D) : 91 x 18 x 55.6 mm
Dimensions (L x W x D) : 3.58" x 0.71" x 2.19"
Unit Weight : 0.06 kg (0.13 lb)
