Delta Chrome series

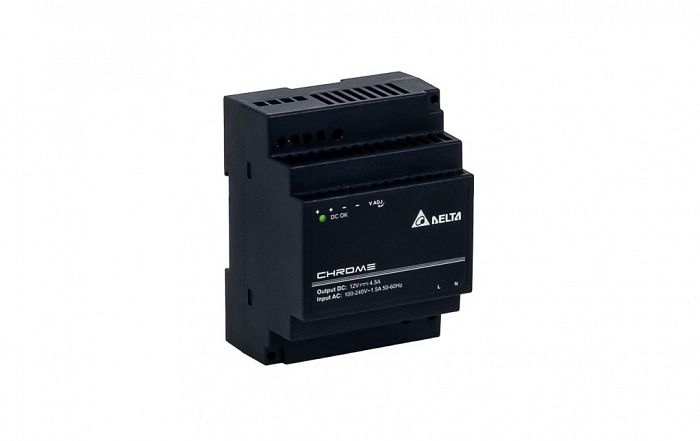

DRC-12V60W1AZ
Protection Class II, Double Isolation (No Earth connection is required). Universal AC input voltage and full power up to 55°C. Power will not de-rate for the entire input voltage range. Efficiency > 86.0% @ 115Vac & 230Vac. NEC Class 2 / Limited Power Source (LPS) certified. Overvoltage / Overcurrent / Over Temperature Protections.
main specifications DRC-12V60W1AZ:
Input Voltage Range: 90-264Vac ( 125-375Vdc )
Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 11.5-14.0Vdc
Nominal Output Current: 4.5A
Output Power: 54W
Dimensions (L x W x D) : 91 x 71 x 55.6 mm
Dimensions (L x W x D) : 3.58" x 2.80" x 2.19"
Unit Weight : 0.22 kg (0.49 lb)
