Delta Chrome series

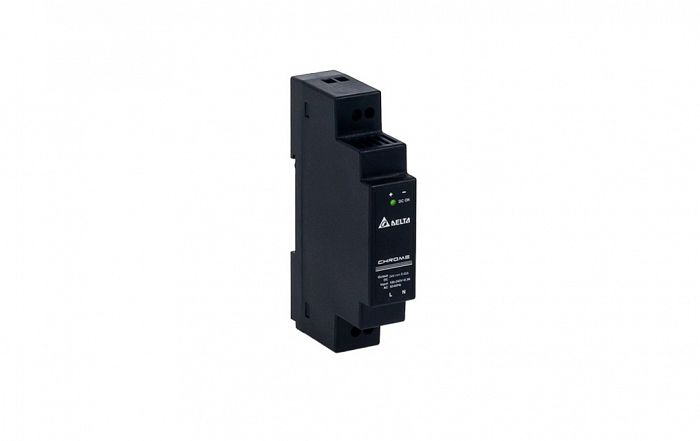

DRC-24V10W1AZ
Protection Class II, Double Isolation (No Earth connection is required). Universal AC input voltage and full power up to 55°C. Power will not de-rate for the entire input voltage range. Efficiency > 80.0% @ 115Vac & 230Vac. NEC Class 2 / Limited Power Source (LPS) certified. Overvoltage / Overcurrent / Over Temperature Protections.
main specifications DRC-24V10w1az:
Input Voltage Range: 90-264Vac ( 125-375 Vdc )
Input Frequency Range: 50-60Hz
Nominal Output Voltage: 24V
Nominal Output Current: 0.42A
Output Power: 10W
Dimensions (L x W x D) : 91 x 18 x 55.6 mm
Dimensions (L x W x D) : 3.58" x 0.71" x 2.19"
Unit Weight : 0.065 kg (0.14 lb)
