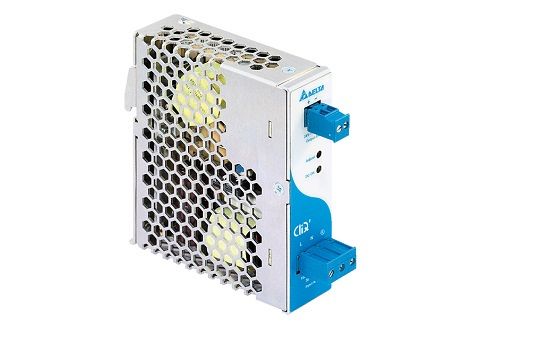

Delta CliQ II series
DRP024V060W1BN
Universal AC input voltage. Power will not de-rate for the entire input voltage range. Power Boost of 150% for 5 secondsFull corrosion resistant aluminium chassis. Conformal coating on PCBA to protect against common dust and chemical pollutants. Hazardous Locations approval to ATEX and Class I, Div 2 (DRP024V060W1BA).
Main specifications DRP024V060W1bn:
Input Voltage Range: 180 - 550Vac (180-305 Vdc)
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24 V
Output Voltage Adjustment Range: 22 - 28 Vdc
Nominal Output Current: 10 A
Output Power: 240 W
Dimensions (L x W x D) : 121 x 32 x 125 mm
Dimensions (L x W x D) : 4.76" x 1.26" x 4.92"
Unit Weight : 0.37 kg (0.82 lb)
