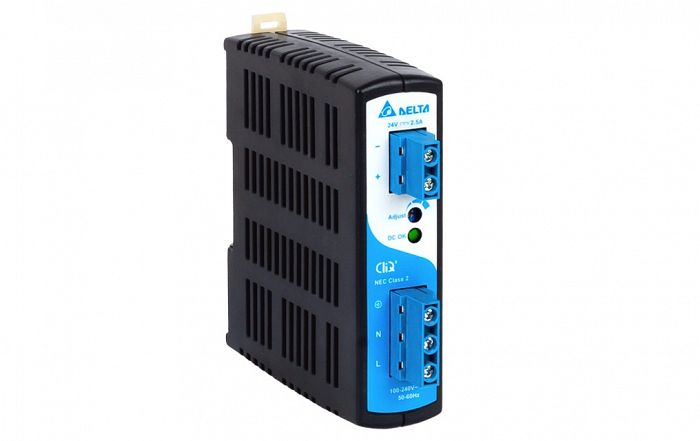

Delta CliQ II series

Reliable design, with expected life of 10 years. Compact, rugged design for ease of handling and installation. Multiple connections to terminals allowed. With Conformal Coating on PCBA (DRP024V060W1NZ)Class I, Div 2 Hazardous Locations (DRP024V060W1NY). IP20 CompliantNEC Class 2 Compliant. Meets worldwide safety requirements. RoHS Directive 2011/65/EU Compliant. Worldwide AC input range without power de-rating. Overvoltage / Overcurrent / Over Temperature Protections.

Main specifications DRP024V060W1NYZ:

Input Voltage Range: 180 - 550Vac (180-305 Vdc)

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24 V

Output Voltage Adjustment Range: 22 - 28 Vdc

Nominal Output Current: 2.5 A

Output Power: 60 W

Dimensions (L x W x D) :  120.6 x 32 x 119.3 mm
Dimensions (L x W x D) :  4.75" x 1.26" x 4.70"

Unit Weight :  0.33 kg (0.73 lb)
