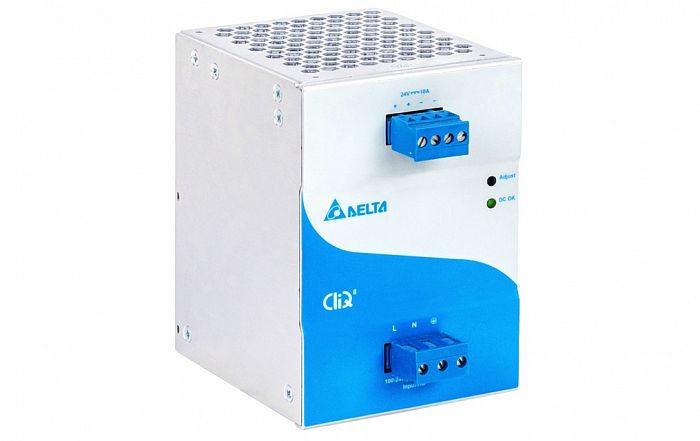

Delta CliQ II series

Universal AC input voltage. Power will not de-rate for the entire input voltage rangen. Power Boost of 150% for 5 seconds. Full corrosion resistant aluminium chassis. Conformal coating on PCBA to protect against common dust and chemical pollutants. Hazardous Locations approval to ATEX and Class I, Div 2.

Main specifications DRP024v240w1ba:

Input Voltage Range: 85 - 264Vac (120-375 Vdc)

Input Frequency Range: 47 - 63 Hz

Nominal Output Voltage: 24 V

Output Voltage Adjustment Range: 22 - 26 Vdc

Nominal Output Current: 10 A

Output Power: 240 W

Dimensions (L x W x D) :  121 x 85 x 124.1 mm
Dimensions (L x W x D) :  4.76" x 3.35" x 4.89"

Unit Weight :  1.10 kg (2.43 lb)
