Delta CliQ II series

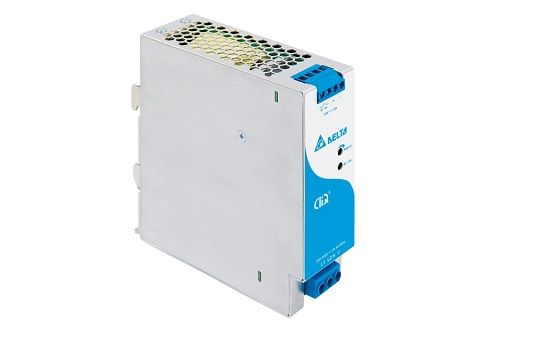

DRP-24V120W2BN
Designed for single phase input 180-305Vac (for L-N) or 2 of 3-Phase system 2 x 180-550Vac (for L-L) or 254-780Vdc. Compact and corrosion resistant aluminium casing. High Efficiency > 90.0% and Power Boost of 120% for 3 seconds. Built-in constant current and hiccup during overload protection. Built-in DC OK Contact. Conformal coating on PCBAs to protect against common dust and chemical pollutants. Overvoltage / Overcurrent / Over Temperature/ Short Circuit Protections.
main specifications DRP-24V120W2BN:
Input Voltage Range: 85 - 264Vac ( 120-375 Vdc )
Input Frequency Range: 47 - 63 Hz
Nominal Output Voltage: 24 V
Output Voltage Adjustment Range: 22 - 26 Vdc
Nominal Output Current: 5 A
Output Power: 120 W
Dimensions (L x W x D) : 124 x 40 x 117 mm
Dimensions (L x W x D) : 4.88" x 1.57" x 4.61"
Unit Weight : 0.62 kg (1.37 lb)
