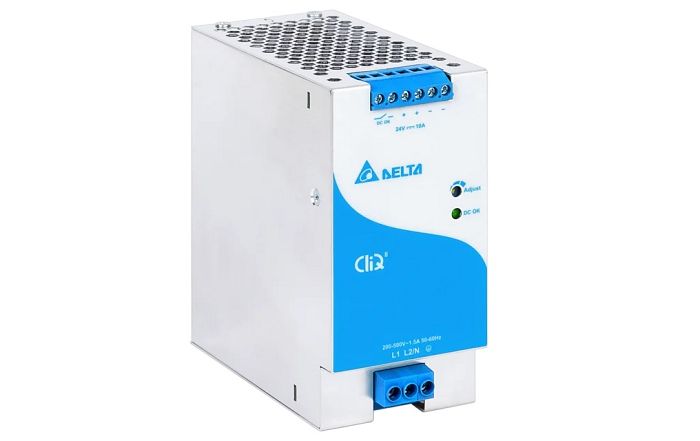

Delta CliQ II series

Designed for single phase input 180305Vac (for LN) or 2 of 3Phase system 2 x 180550Vac (for LL) or 254780Vdc. Compact and corrosion resistant aluminium casing. High Efficiency > 90.0% and Power Boost of 120% for 3 seconds. Builtin constant current and hiccup during overload protection. Builtin DC OK Contact. Conformal coating on PCBAs to protect against common dust and chemical pollutants. Overvoltage / Overcurrent / Over Temperature/ Short Circuit Protections.

Main specifications DRP-24V240W2BN:

Input Voltage Range: 180 - 550Vac (180-305 Vdc)

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24 V

Output Voltage Adjustment Range: 22 - 28 Vdc

Nominal Output Current: 10 A

Output Power: 240 W

Dimensions (L x W x D) :  124 x 60 x 117 mm
Dimensions (L x W x D) :  4.88" x 2.36" x 4.61"

Unit Weight :  0.81 kg (1.79 lb)
