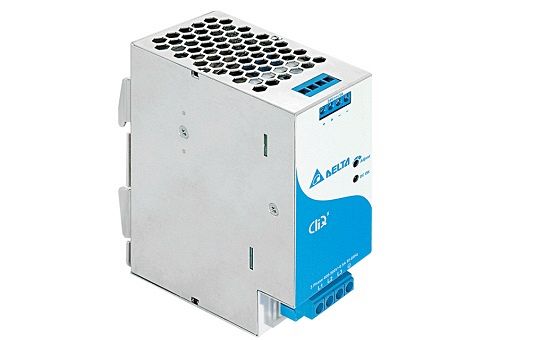

Delta CliQ II series
DRP024V120W3BA
Worldwide AC input range without power de-rating. 3 x 320Vac-600Vac or 2 x 360Vac-600VacCompact. Rugged design for ease of handling and installation. 150% Power Boost (steady state peak load) for 5 seconds. Class I, Div 2 Hazardous Locations. Overvoltage / Overcurrent / Over Temperature ProtectionsIP20 Compliant.
Main Specifications DRP024v120w3ba:
Input Voltage Range: 320-600Vac ( 450-800 Vdc )
Input Frequency Range: 47 - 63 Hz
Nominal Output Voltage: 24 V
Output Voltage Adjustment Range: 22 - 26 Vdc
Nominal Output Current: 5 A
Output Power: 120 W
Dimensions (L x W x D) : 121 x 50 x 117.3 mm
Dimensions (L x W x D) : 4.76" x 1.97" x 4.62"
Unit Weight : 0.66 kg (1.46 lb)
