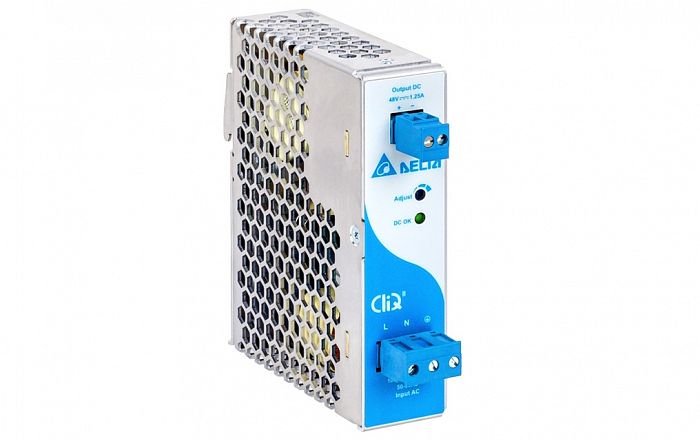

Delta CliQ II series
DRP048V120W1BA
Universal AC input voltage. Power will not de-rate for the entire input voltage range. Power Boost of 150% for 5 seconds. Full corrosion resistant aluminium chassis. Conformal coating on PCBA to protect against common dust and chemical pollutants. Hazardous Locations approval to ATEX and Class I, Div 2 (DRP048V120W1BA).
Main specifications drp048v120w1ba:
Input Voltage Range: 85-264Vac ( 120-375 Vdc )
Input Frequency Range: 50-60Hz
Nominal Output Voltage: 48V
Output Voltage Adjustment Range: 48-56Vdc
Nominal Output Current: 2.5A
Output Power: 120W
Dimensions (L x W x D) : 121 x 50 x 123.1 mm
Dimensions (L x W x D) : 4.76" x 1.97" x 4.85"
Unit Weight : 0.72 kg (1.59 lb)
