Delta CliQ M series

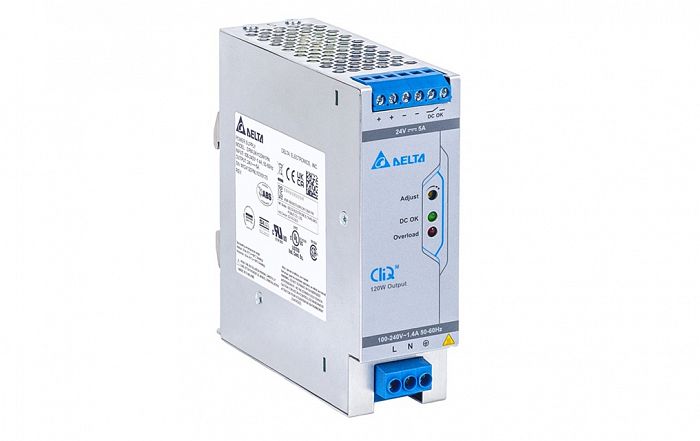

DRM-24V120W1PN
Universal AC input voltage range. High power density in corrosion resistant aluminium casing. Power Boost of 150% for 5 seconds. Advanced Power Boost (APB) – prevents system shutdown due to faulty load on a multiple loads connection. Built-in DC OK Contact and LED indicator for DC OK/ OverloadConformal coating on PCBAs to protect against common dust and chemical pollutants.
Main specifications DRM-24V120W1PN:
Input Voltage Range: 85-264Vac ( 88-375Vdc )
Input Frequency Range: 50-60Hz
Nominal Output Voltage: 24V
Nominal Output Current: 5A
Output Power: 120W
Dimensions (L x W x D) : 124 x 40 x 117 mm (4.88" x 1.57" x 4.61")
Unit Weight : 0.63 kg (1.39 lb)
