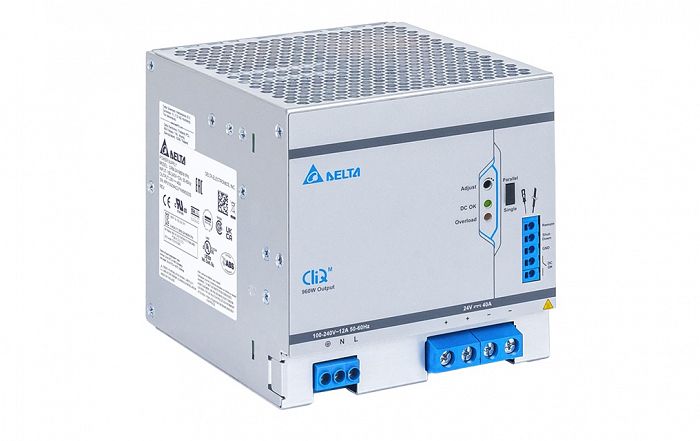

Delta CliQ M series
DRM-24V960W1PN
Universal AC input voltage range. Built-in active PFC with up to 95.5% efficiency. Full power from -25°C to +60°C @ 5,000m (16,400 ft.). Power Boost of 150% up to 7 seconds. Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection. DNV GL and ABS approvals for maritime applications. Built-in DC OK Contact and LED indicator for DC OK/ Overload. Features current sharing for parallel connection / Shut-Down Input / Remote Control of Output Voltage / Internal Data Logging for troubleshooting. Conformal coating on PCBAs to protect against common dust and chemical pollutants.
Main specifications DRM-24V960W1PN:
Input Voltage Range: 90-264Vac (Continuously operating)
85-90Vac (With power de-rating)
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28Vdc
Output Current: 40A
Output Power: 960W
Dimensions: 124x125x133.6 mm (4.88" x 4.92" x 5.26")
Unit Weight: 2.87 kg (6.33 lb)
