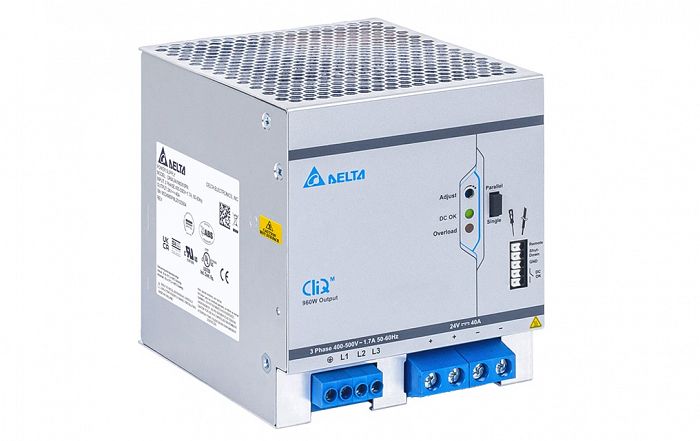

Delta CliQ M series
DRM-24V960W3PN
Built-in constant current circuit for charging application. Full power from -25°C to +60°C @ 5,000m (16,400 ft.). Power Boost of 150% up to 7 seconds. Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection. DNV GL and ABS approvals for maritime applications. Built-in DC OK Contact and LED indicator for DC OK/ Overload. Conformal coating on PCBAs to protect against common dust and chemical pollutants.
Main specifications DRM-24V960W3PN:
Input Voltage Range: 3 x 320-575Vac (3-Phase) or 2 x 380-575Vac (2-Phase)
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28Vdc
Output Current: 40A
Output Power: 960W
Dimensions: 124 x 110 x 128.6 mm (4.88” x 4.33” x 5.06”)
Unit Weight: 2.3kg (5.07 lb)
