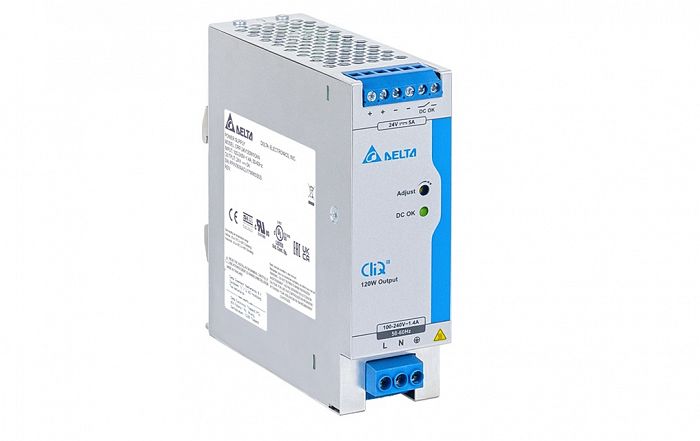

Delta CliQ III series
DRP-24V120W1CAN
Universal AC input voltage range. Built-in constant current circuit for charging application. High efficiency of up to 91% at 230Vac. Power Boost of 150% for 5 seconds. Advanced Power Boost (APB) of 200% for 50ms. SEMI F47 compliance at 120Vac. Extreme low temperature cold start at -40°C. Built-in DC OK Contact and LED indicator for DC OK. Conformal coating on PCBA to protect against common dust and chemical pollutants.
Main specifications DRP-24V120W1CAN:
Input Voltage Range: 100-264Vac (Continuously operating) 88-100Vac (With power de-rating)
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28Vdc
Output Current: 5A
Output Power: 120W
Dimensions: 124 x 40 x 117 mm (4.88" x 1.57" x 4.61")
Unit Weight: 0.58 kg (1.28 lb)
