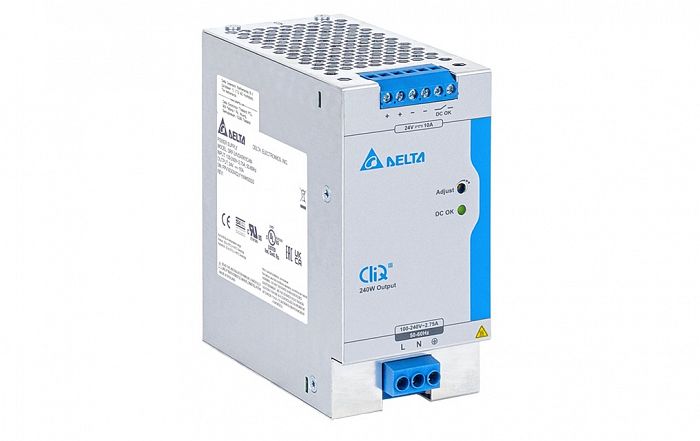

Delta CliQ III series
DRP-24V240W1CAN
* PLEASE NOTE *
This product will soon be discontinued.
Last Buy Date: 2026/12/31~2027/12/31
Last Shipment Date: 2028/6/30
Universal AC input voltage range. Built-in constant current circuit for charging application. High efficiency of up to 94% at 230Vac. Power Boost of 150% for 5 secondsAdvanced Power Boost (APB) of 200% for 50ms. SEMI F47 compliance at 120Vac. Extreme low temperature cold start at -40°C. Built-in DC OK Contact and LED indicator for DC OK. Conformal coating on PCBA to protect against common dust and chemical pollutants.
Main specifications DRP-24V240W1CAN:
Input Voltage Range: 100-264Vac (Continuously operating) 88-100Vac (With power de-rating)
Nominal Input Frequency: 50-60Hz
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28Vdc
Output Current: 10A
Output Power: 240W
Dimensions: 124 x 60 x 117 mm (4.88" x 2.36" x 4.61")
Unit Weight: 0.84 kg (1.85 lb)
