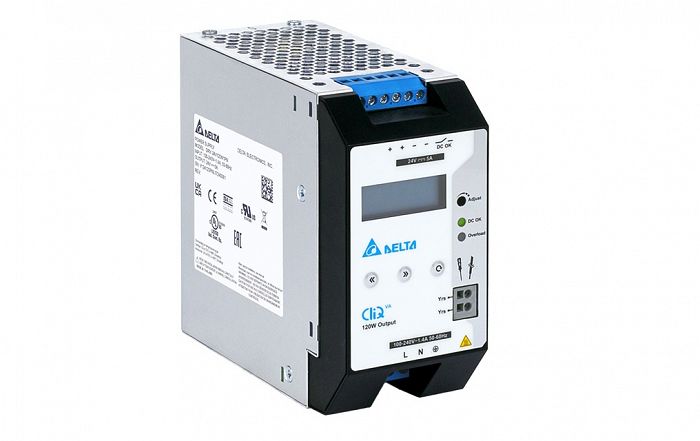

Delta CliQ VA series
DRV-24V120W1PN
Universal AC input voltage range. LCD display monitoring the output current / voltage / peak current and temperature. Life time expectancy alarm signal and monitoring. Built-in active PFC with up to 94% efficiency. Power Boost of 150% up to 7 seconds. Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection. DC OK Contact and LED indicator for DC OK/ Overload. Conformal coating on PCBAs to protect against common dust and chemical pollutants
Main specifications DRV-24V120W1PN:
Input Voltage Range: 85-264Vac
Nominal Input Frequency: 50-60Hz
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28Vdc
Output Current: 5A
Output Power: 120W
Dimensions: 124 x 60 x 139 mm (4.88" x 2.36" x 5.47")
Unit Weight: 0.75 kg (1.65 lb)
