Delta Lyte DIN Rail Power Series

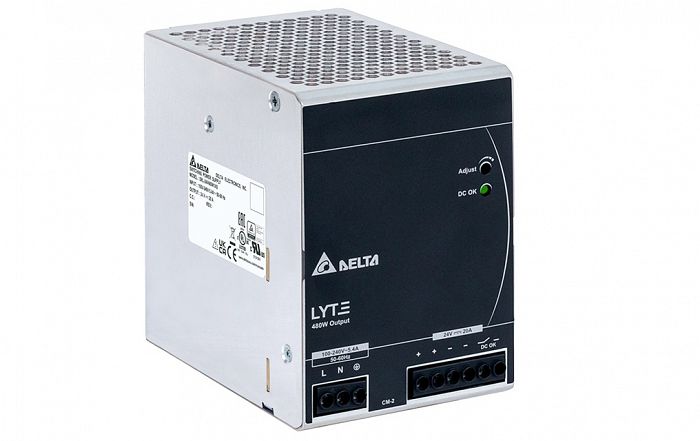

DRL-24V480W1AS
Universal AC input voltage. Built-in constant current circuit for reactive loads. Up to 88.0% efficiency. Full power from -20°C to +50°C operation at 230Vac @ 5000 meters or 16400 feet altitude. Built-in DC OK relay contact option available. Compliance to SEMI F47 @ 200Vac. Conformal coating on PCBAs to protect against common dust and chemical pollutants.
main specifications DRL-24V480W1AS:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
DC Input Voltage Range: 120-375Vdc
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 22-28Vdc
Output Current: 20A
Output Power: 480W
Dimensions: 123.6 x 85.5 x 128.5 mm (4.87" x 3.37" x 5.06")
Unit Weight: 1.30 kg (2.87 lb)
