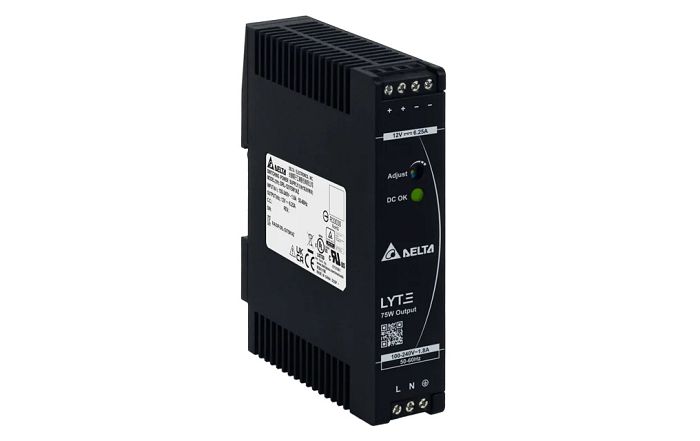

Delta Lyte DIN Rail Power Series
DRL-12V75W1AZ
Universal AC input voltage range. Built-in constant current circuit for reactive loads. Up to 87.5% efficiency. Full power from -10°C to +50°C @ 230Vac with -30°C Cold Start. Compliance to SEMI F47 @ 200Vac.
main specifications DRL-12V75W1AZ:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 10.8-13.2Vdc
Output Current: 6.25A
Output Power: 75W
Dimensions: 123.6 x 27 x 102 mm (4.87" x 1.06" x 4.02")
Unit Weight: 0.22 kg (0.49 lb)
