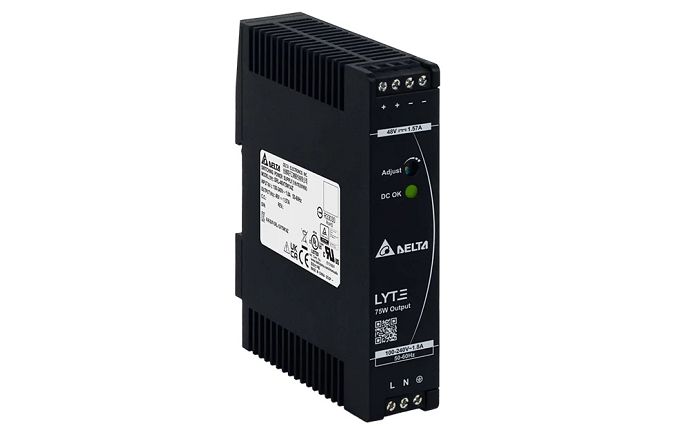

Delta Lyte DIN Rail Power Series
DRL-48V75W1AZ
Universal AC input voltage range. Built-in constant current circuit for reactive loads. Up to 90% efficiency. Full power from -10°C to +50°C @ 230Vac with -30°C Cold Start. Compliance to SEMI F47 @ 200Vac. NEC Class 2 / Limited Power Source (LPS) certified.
main specifications DRL-48V75W1AZ:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 48V
Output Voltage Adjustment Range: 43.2-52.8Vdc
Output Current: 1.57A
Output Power:75.36W
Dimensions: 123.6 x 27 x 102 mm (4.87" x 1.06" x 4.02")
Unit Weight: 0.22 kg (0.49 lb)
