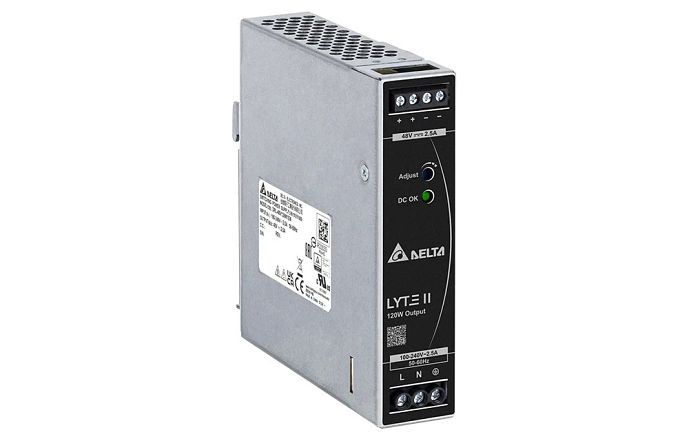

Delta Lyte DIN Rail Power Series

Universal AC input voltage range. Built-in constant current circuit for reactive loads. High power density. Operate from -30°C to +70°C with -40°C Cold Start. Reduced no-load power consumption. Compliance with DOE VI Energy Standard. Compliance to SEMI F47 @ 200Vac.

Main specifications DRL-48V120W1EN:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 48V

Output Voltage Adjustment Range: 43.2-52.8Vdc

Nominal Output Current: 2.5A

Output Power: 120W

Dimensions (L x W x D) : 123.6 x 30 x 116.8 mm (4.87” x 1.18” x 4.60”)

Unit Weight :  0.45 kg (0.99 lb)
