Delta Sync series

Ultra compact sizeUniversal AC input voltage and full power up to 55°C. High Efficiency 88.0% typ. @ 230Vac. NEC Class 2 / Limited Power Source (LPS) certified. Overvoltage / Overcurrent / Over Temperature Protections. Meet Surge Immunity IEC 61000-4-5, Level 4 (CM: 4kV, DM: 2kV).

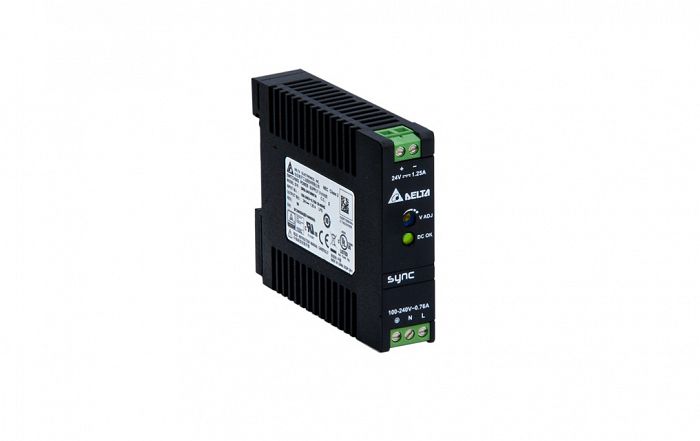

main specifications drs-24v30w1az:

Input Voltage Range: 85-264Vac

Input Frequency Range: 50-60Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 21.6-26.4Vdc

Nominal Output Current: 1.25A

Output Power: 30W

Dimensions (L x W x D) :  75 x 21 x 89.5 mm
Dimensions (L x W x D) :  2.95" x 0.83" x 3.52"

Unit Weight :  0.10 kg (0.22 lb)
