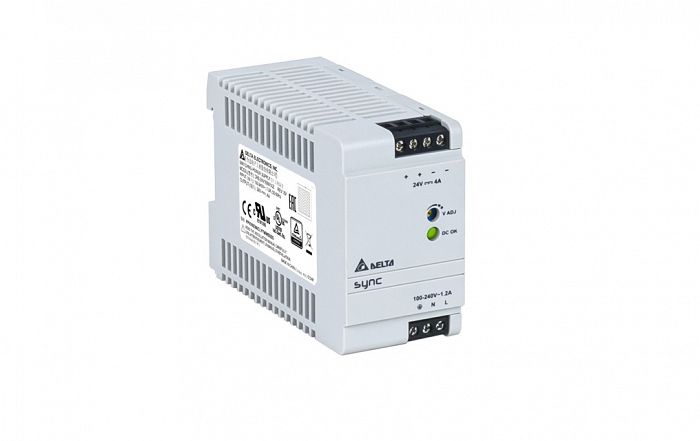

Delta Sync series
DRS-24V100W1AZ
Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground. Universal AC input voltage and full power from -10°C to +55°C operation. Up to 89.0% efficiency and built-in active PFC. Low earth leakage current < 0.5mA @ 264VacBuilt-in DC OK relay contact option available. Extreme low temperature cold start at -40°CNEC Class 2 / Limited Power Source (LPS) certified (DRS-24V100W1NR)
Main specifications drs-24v100w1az:
Input Voltage Range: 85-264Vac (120-375Vdc)
Input Frequency Range: 47-63Hz
Output Voltage Adjustment Range: 24-28Vdc
Output Current: 4A
Output Power: 96W
Dimensions: 75 x 45 x 100 mm (2.95" x 1.77" x 3.94")
Unit Weight: 0.325 kg (0.72 lb)
