Delta PMR series for LED

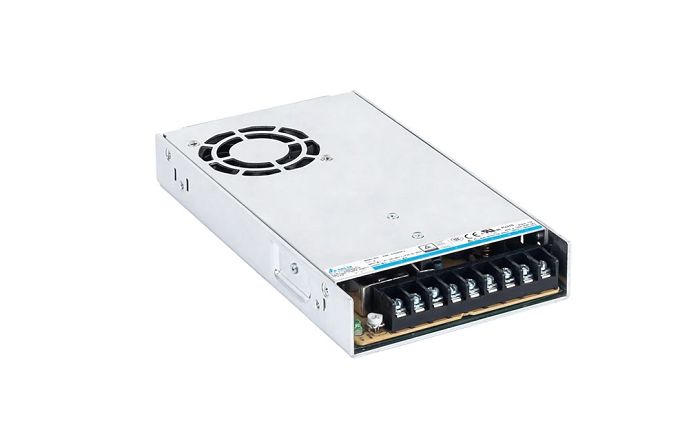

PMR-5V320WCAA
Universal AC input voltage. Full corrosion resistant aluminium case and chassis. Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. Low profile design for 1U installation and automatic fan speed control. High MTBF > 700,000 hrs as per Telcordia SR-332. Short Circuit / Overvoltage / Overload / Over Temperature Protections.
Main specifications pmr-5v320wcaA:
Input Voltage Range: 88-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 5V
Output Voltage Adjustment Range: 4.50-5.50Vdc
Nominal Output Current: 60A
Output Power: 300W
Dimensions (L x W x D) : 215 x 115 x 30 mm
Dimensions (L x W x D) : 8.46" x 4.53" x 1.18"
Unit Weight : 0.76kg (1.68 lb)
