Delta PMR series for LED

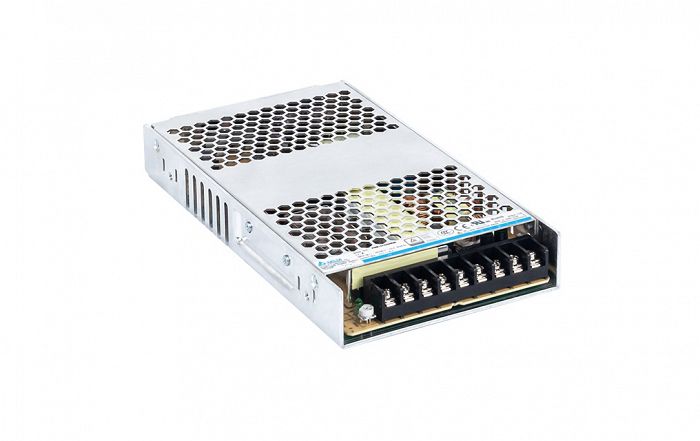

PMR-5V320WDAA
Universal AC input voltage. Full corrosion resistant aluminium case and chassis. Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. Low profile design for 1U installation. High reliability with fanless design. Built-in DC OK relay contact and redundancy operation.
Main specifications pmr-5v320wdaA:
Input Voltage Range: 88-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 5V
Output Voltage Adjustment Range: 4.50-5.50Vdc
Nominal Output Current: 60A
Output Power: 300W
Dimensions (L x W x D) : 215 x 115 x 30 mm
Dimensions (L x W x D) : 8.46" x 4.53" x 1.18"
Unit Weight : 0.86 kg (1.90 lb)
