Delta medical and industrial plug in series

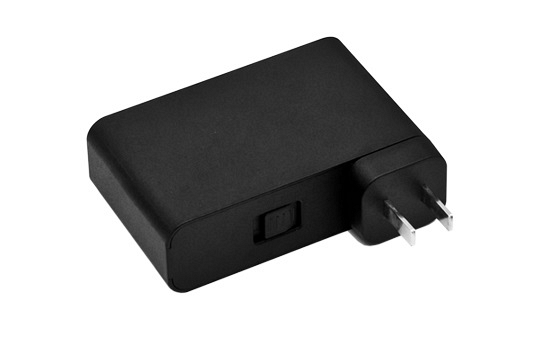

MDS-030AAC15
MDS-030AAC05, 12, 15, 24 Meet DOE Level VI & ErP 2017. Low touch current. Suitable for type BF applications. Detachable AC plug with multiple country options. Class B EMI and 4th Edition Immunity Compliant. Safety rated for medical and IT applications. IP22 ingress protection rating. 2 × MOPP isolation. 500K hours MTBF. 3 years warranty
Main specifications mds-030aac15:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 15V
Nominal Output Current 2A
Output Power: 30W
Dimensions (L x W x D) : 88 x 53.5 x 27.5 mm
Dimensions (L x W x D) : 3.46" x 2.11" x 1.08"
Unit Weight : 0.15kg (0.33 lb)
