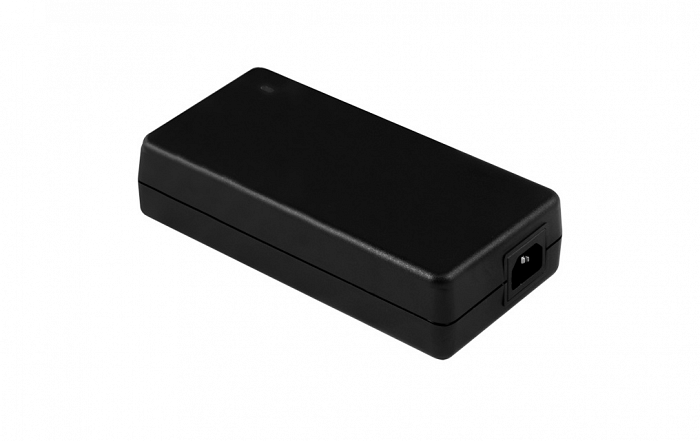

MEA-250A24C

Meet Efficiency Level VI. Safety Approvals to IEC 60601-1 3.1 Ed. & IEC 60950-1. Compliant with IEC 60601-1-2 3th and 4th Ed. Requirements. IP22 ingress protection rating. 2 × MOPP isolation. Suited for Type BF Medical Products.

Main specifications MEA-250A24C:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Current: 10.42A

Output Power: 250W

Dimensions (L x W x D) : 200 x 100 x 43 mm (7.87" x 3.94" x 1.69")

Unit Weight: 1.05kg (2.31 lb)



Download datasheet
