Delta medical and industrial external series

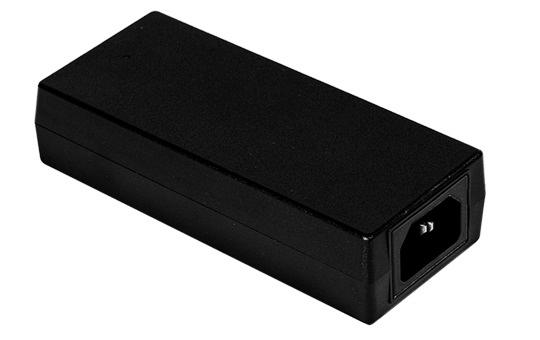

MEA-065A19C
Extreme compact size. Meet Efficiency Level VI. Safety Approvals to IEC 60601-1 3.1 Ed. & IEC 62368-1. Compliant with IEC 60601-1-2 4th Ed. Requirements. Low touch current ( <0.1mA Normal & 0.3mA signal fault ). 2 × MOPP isolation.
Main specifications MEA-065A19C:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 19V
Output Current: 3.42A
Output Power: 65W
Dimensions (L x W x D) : 50 x 115 x 29 mm (1.97” x 4.53” x 1.14”)
Unit Weight: 0.25 kg (0.55 lb)
