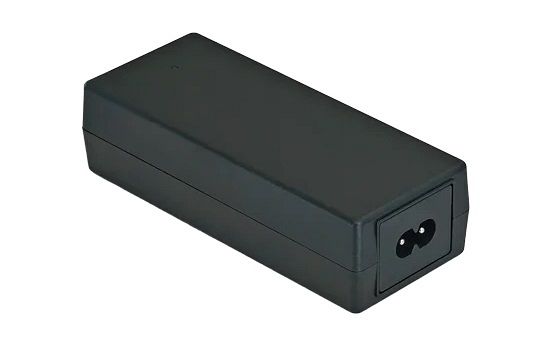

MEA-065A12B

Class II, Double Isolation (No Earth connection is required). Extreme compact size. Meet DOE Level VI & CoC Tier 2 energy requirement. Safety Approvals to IEC 60601-1, IEC 62368-1. Compliant with IEC 60601-1-2 Ed. 4.1 Requirements. Low touch current (<0.1 mA Normal & 0.3 mA signal fault). 2 × MOPP isolation. Limited Power Source (LPS) certified.

Main specifications MEA-065A12B:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 12V

Output Current: 5A

Output Power: 60W

Dimensions (L x W x D): 120 x 50 x 32 mm (4.72” x 1.97” x 1.26”)

Unit Weight: 0.25 kg (0.55 lb)



Download datasheet
