Delta medical and industrial external series

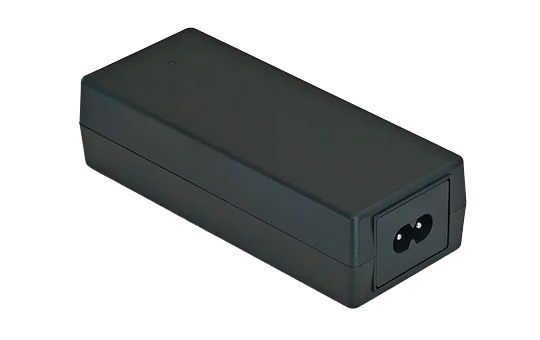

MEA-065A19B
Class II, Double Isolation (No Earth connection is required). Extreme compact size. Meet DOE Level VI & CoC Tier 2 energy requirement. Safety Approvals to IEC 60601-1, IEC 62368-1. Compliant with IEC 60601-1-2 Ed. 4.1 Requirements. Low touch current (<0.1 mA Normal & 0.3 mA signal fault). 2 × MOPP isolation. Limited Power Source (LPS) certified.
Main specifications MEA-065A19B:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 19V
Output Current: 3.42A
Output Power: 65W
Dimensions (L x W x D): 120 x 50 x 32 mm (4.72” x 1.97” x 1.26”)
Unit Weight: 0.25 kg (0.55 lb)
