Delta medical and industrial external series

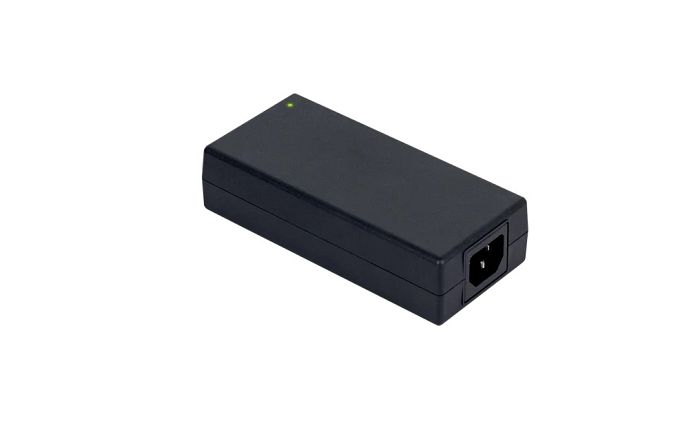

MEA-160A19C
Extreme compact size. Meet Efficiency Level VI / VII & CoC Tier 2. Universal AC input range at 85-264 Vac. Safety Approvals to IEC 60601-1 & IEC 62368-1. Compliant with IEC 60601-1-2 Ed. 4 Requirements. Low touch current ( <0.1 mA Normal & single fault ). 2 × MOPP isolation.
Main specifications MEA-160A19C:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 19V
Output Current: 8.42A
Output Power: 160W
Dimensions (L x W x D): 150 x 65 x 32 mm (5.91” x 2.56” x 1.26”)
Unit Weight: 0.45 kg (0.99 lb)
