Delta Medical and Industrial Open frame series

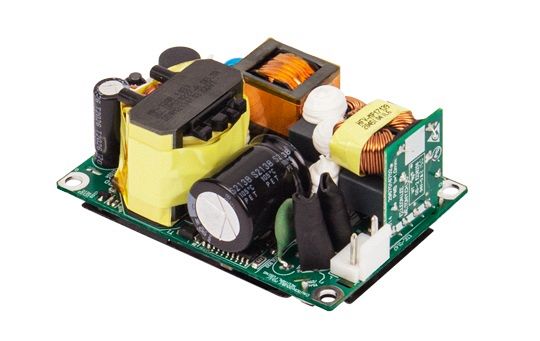

MEP-120A18J
2" x 3" x 1.2" Package with base. Up to 16.67 W/inch3 power density. Up to 120 W output with natural convection cooling. Up to 150 W peak power for 10 sec. No Load Consumption < 0.21 W. Up to 70 °C Ambient Operation. Up to 700KHrs MTBF. 2 x MOPP Isolation. Suited for Type BF Medical Products. Class B Conducted and Radiated EMI. IEC60601-1-2 4th Edition Immunity Compliance.
Main specifications MEP-120A18J:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Output Current: 6.67A
Output Power: 120W
Dimensions (LxWxD): 76.2 x 50.8 x 31 mm (3.00” x 2.00” x 1.22”)
Unit Weight: 0.14 kg (0.31 lb)
