Delta Medical and Industrial Open frame series

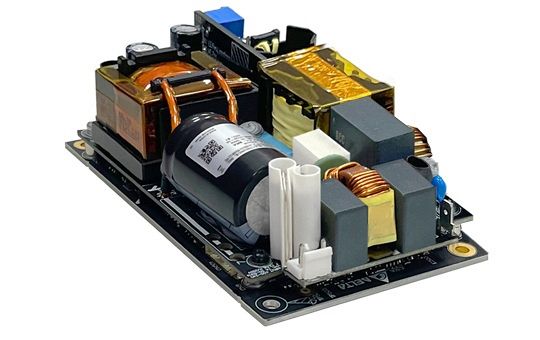

MEP-600A24J BRA
GaN based technology. 3" x 5" x 1.5" package with base. Up to 26.67 W/inch³ power density. Up to 600 W output with fan cooling. Up to 450 W output with natural convection cooling. 5V / 2A standby output. Built-in remote on off & current sharing function. Remote sense voltage compensation. Digital voltage trimming. Up to 80 °C operating temperature. Up to 500KHrs MTBF. 2 x MOPP isolation. Suited for Type BF medical products. Class B conducted and radiated EMI. Medical, IT and household appliances safety approvals.
Main specifications MEP-600A24J BRA:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Output Current: 0-25A
Output Power: 600W
Dimensions (LxWxD): 127.0 x 76.2 x 39.0 mm (5.00” x 3.00” x 1.54”)
Unit Weight: 0.435 kg (0.96 lb)
