Delta Medical and Industrial Open frame series

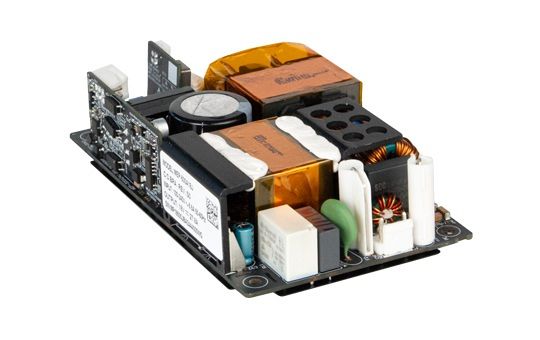

MEP-500A18J BRA
3" x 5" x 1.5" low-profile design. Up to 25.64 W/inch³ power density. Up to 500 W output with fan cooling. 5V / 2A standby output. Built-in remote on off function. Remote sense voltage compensation. Analog voltage trimming. Up to 85 °C operating temperature. Medical, IT and household appliances safety approvals.
Main specifications MEP-500A18J BRA:
Input Voltage Range: 85-264 Vac
Input Frequency Range: 47-63Hz
Output Current: 0-27.8A
Output Power: 500.4W
Dimensions (LxWxD): 127.0 x 76.2 x 33.1 mm (5.00” x 3.00” x 1.30”)
Unit Weight: 0.41 kg (0.90 lb)
