Delta Medical and Industrial Open frame series

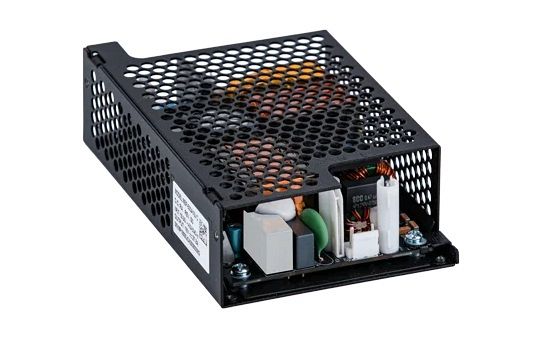

MEP-500A24J CRA
3" x 5" x 1.5" low-profile design. Up to 25.64 W/inch³ power density. Up to 500 W output with fan cooling. 5V / 2A standby output. Built-in remote on off function. Remote sense voltage compensation. Analog voltage trimming. Up to 85 °C operating temperature. Medical, IT and household appliances safety approvals.
Main specifications MEP-500A24J CRA:
Input Voltage Range: 85-264 Vac
Input Frequency Range: 47-63Hz
Output Current: 0-20.9A
Output Power: 501.6W
Dimensions (LxWxD): 138.6 x 88.2 x 38.4 mm (5.46” x 3.47” x 1.51”)
Unit Weight: 0.56 kg (1.23 lb)
