Delta Configurable Power Supplies For Medical and Industrial Application

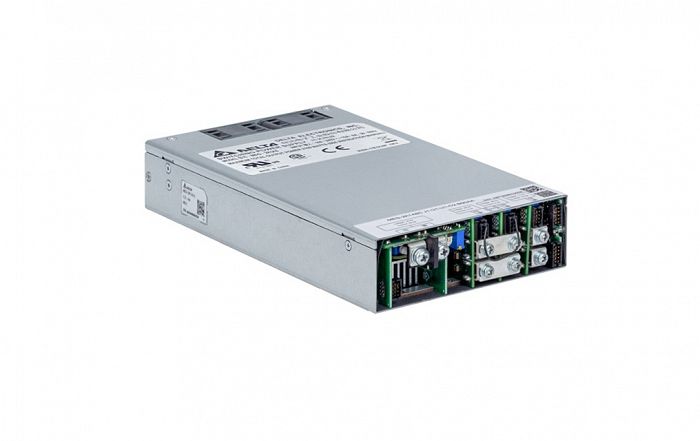

MEG-2K1A6
Up to 2100W in 5”x10”x1.59” Package. Up to 26.4W/inch3 Power Density. Full Power up to 50°C Ambient. Up to 500kHrs MTBF. 2xMOPP Isolation for Medical Application. Output selectable from 2V to 60V. Optional CV/CC Version on demand. Current sharing. Class B Conducted and Radiated EMI. IEC60601-1-2 4th edition immunity compliance. Normal and Reversed Option for Global Remote On/Off. Analog and Digital Voltage Trimming. PMBus Ver 1.3 Supported. Intelligent Fan Speed Control. Optional RS485/RS232/USB Communication Adapters. PC GUI for easy parameter setting and monitoring.
Main specifications Meg-2k1a6:
Input Voltage Range: 90-264Vac
Nominal Input Frequency: 50-60Hz
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 6 x 2-60V
Output Current: 6 x 5-45A
Output Power: Max. 2100W
Dimensions (L x W x D) : 254 x 127 x 40.5 mm
Dimensions (L x W x D) : 10.00" x 5.00" x 1.59"
Unit Weight: 2 kg (4.41 lb)
