Delta Configurable Power Supplies For Medical and Industrial Application

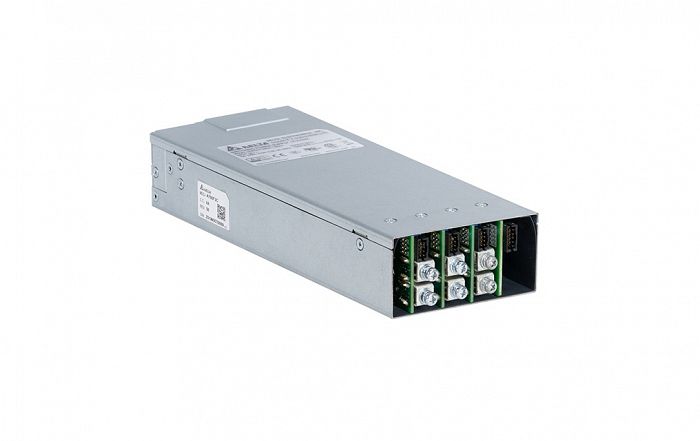

MEG-700A3
Up to 700W in 3.5” x 8.5” x 1.63” Package. Up to 14.5W/inch³ Power Density. Full Power up to 50°C Ambient. 3 Slots Modules Configurable. 2xMOPP Isolation for Medical Application. Output selectable from 2V to 60V. Current sharing for single slot modules. Class B Conducted and Radiated EMI. IEC 60601-1-2 4th edition immunity compliance. Normal and Reversed Option for Global Remote On/Off. Analog Voltage Trimming. Conformal coating on PCBAs to protect against common dust and pollutants.
Main specifications Meg-700A3:
Input Voltage Range: 90-264Vac
Nominal Input Frequency: 50-60Hz
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 2-60V
Output Power: 700W
Dimensions (L x W x D) : 215 x 88.9 x 41.5 mm (8.46” x 3.50” x 1.63”)
Unit Weight: 0.8kg (1.76 lb)
