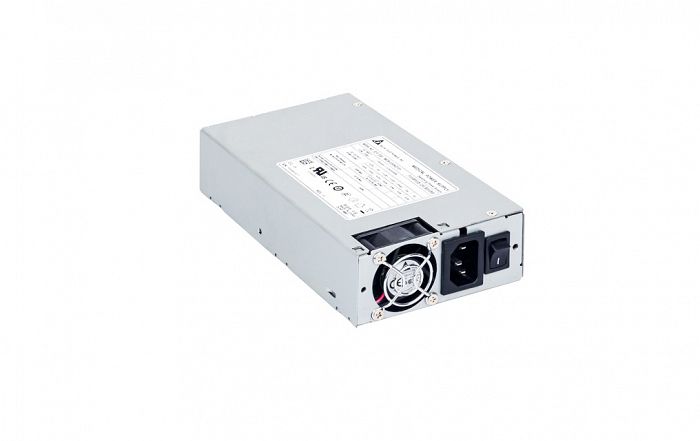

Delta Low profile ATX series
MDS-350AD701
ATX 12V standard function & form factor IEC60601-1 3rd ed. (Medical) & IEC 60950-1(ITE) approvals. Suitable for type BF patient access applications. Built-in active PFC. Maximum output power of 350 watts Compliant with IEC 60601-1-2 4th Ed. requirements
Main specifications mds-350ad701:
Input Voltage Range:90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V, 12V, 5V, 3.3V, 5V, -5V, -12V
Nominal Output Current 8A, 9A, 1.25A, 8A, 8A, 0.25A, 0.1A
Output Power: 350W
Dimensions (L x W x D) : 194 x 100 x 40.5 mm
Dimensions (L x W x D) : 7.64" x 3.94" x 1.59"
Unit Weight : 1.2kg (2.65 lb)
