Delta Low profile IMA series

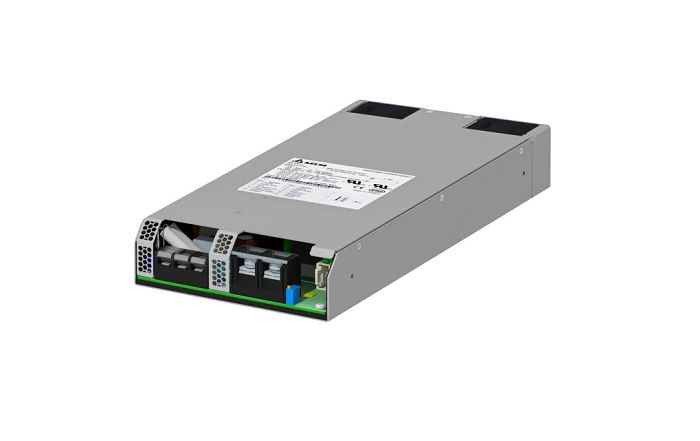

IMA-S2000-24-YV
Safety approval for Medical (IEC 60601-1-2 and 3rd+A1 edition CB report) TUV EN60601-1:2006. CAN/CSA-C22.2 NO.60601-1 + ANSI/AAMI, ES 60601-1, 3000m altidude, 100-240Vac only. Industrial (IEC 62368) and IT IEC60950-1 CB report, IEC62368-1 CB report, TUV EN62368-1, UL62368-1 and CAN/CSA C22.2 No. 62368-1. 3000 Watt peak power (up to 5s). Standby power < 2 Watt. Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc. Wide adjustable output voltage range (+/- 20%). Standby output 5 Vdc / 2 A. High efficiency: up to 94%. Size: 309.6 x 127 x 40.6 mm (12.2 x 5 x 1.6 in) (1U design). Low acoustic noise level of less than 39 dB(A), variable speed fan control. Active current sharing. 2 × MOPP and BF appliances. PMBus™ compatible for control, programming and monitoring. 500,000 hour MTBF. Optional conformal coating. 3 years warranty.
Main specifications IMA-S2000-24-YV:
Input Voltage Range: 80-275Vac
Input Frequency Range: 47-63Hz
Input Current: 17.2 A @80 Vac / 11 A @120 Vdc
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 19.2 V – 28.8 V
Nominal Output Current: 83.3A
Output Power: 2000W
Dimensions (L x W x D) : 309.6 x 127 x 40.6 mm (12.19” x 5.00” x 1.60”)
Unit Weight : 2kg (4.41 lb)
