Delta Low profile with PMBus

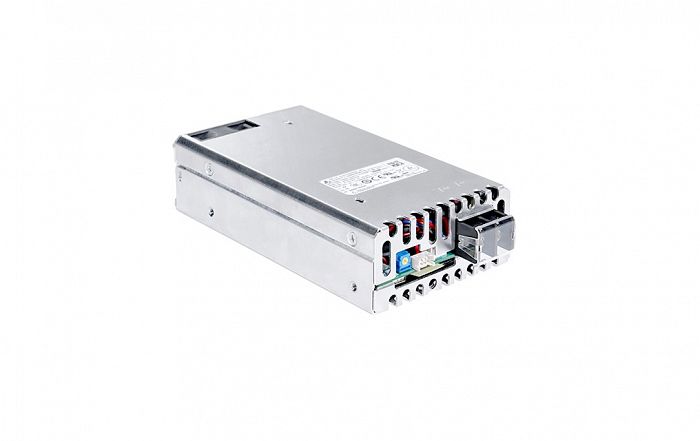

MEB-500A24F
Safety Approvals to IEC 60601-1 2nd & 3.1rd ed. & IEC 60950-1 & IEC 62368-1. Compliant with IEC 60601-1-2 4th Ed. Requirements. High Power Density. Built-in Remote On/Off. 5V/1A Standby Output. 12V/0.5A Fan Output for System. IT & Medical Safety Approvals.
Main specifications MEB-500A24F:
Input Voltage Range: 90-264Vac
Nominal Input Frequency: 50-60Hz
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Current: 21A
Output Power: 504W
Dimensions (L x W x D) : 165.3 x 85.2 x 41mm (6.51" x 3.35" x 1.61")
Unit Weight: 0.66kg (1.46 lb)
