Up to 1500 Watt in 5.00" x 8.03" x 1.59" Package. Up to 23.5 W/inch3 Power Density. Full Power up to 50°C Ambient. Up to 500KHrs MTBF. 5V/2A Standby Output. Current Sharing. Conformal Coating. Class B Conducted and Radiated EMI. LED Indicator. Remove On/Off control. Analog Voltage Trimming. Intelligent Fan Speed Control.

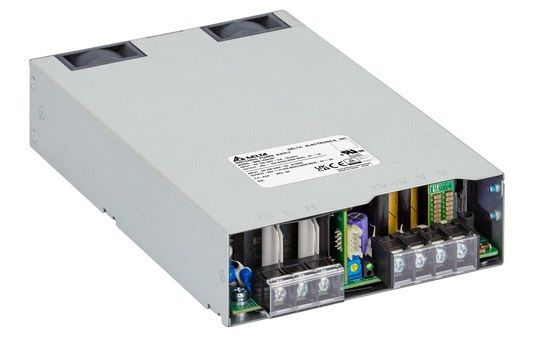

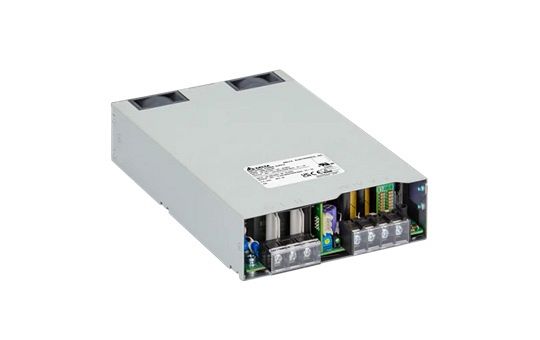

Main specifications MEB-1K5A24T:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Current: 62.5A

Output Power: 1500W

Dimensions (L x W x D) : 204 x 127 x 40.5 mm (8.03” x 5.00” x 1.59”)

Unit Weight: 1.5 kg (3.31 lb)


Download datasheet
