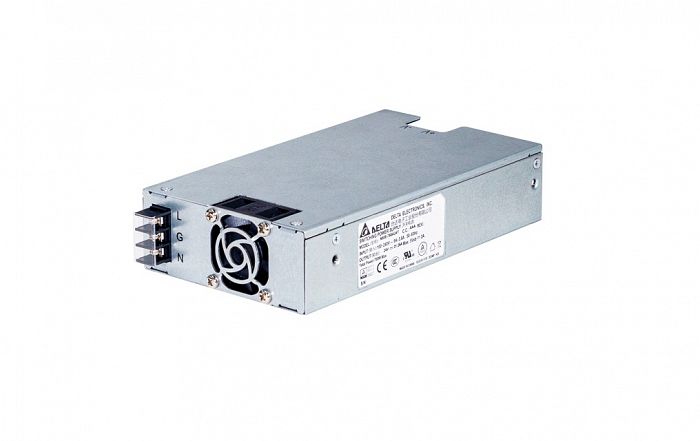

Delta Low profile with PMBus
MEB-750A24T
Up to 750 Watt in 4"x7"x1.575" Package. Up to 17W/inch³ Power Density. Full Power from 90V to 264V. Full Power up to 50°C Ambient. Up to 500KHrs MTBF. 2MOPP Isolation. Suited for Type BF Medical Products. 5V/2A Standby Output. Current Sharing. Conformal Coating. Class B Conducted and Radiated EMI. IEC60601-1-2 4th Edition Immunity Compliance. Normal and Reversed Option for Remote On/Off and Power Good Signal. Voltage Trimming.
Main specifications MEB-750A24T:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Current: 0-31.25A
Output Power: 750W
Dimensions (L x W x D) : 177.8 x 101.6 x 40 mm (7.00” x 4.00” x 1.57”)
Unit Weight: 1.1 kg (2.43 lb)
