- Standard industrial footprint of 3” x 5”
- 300W fan cool, 240W convection cool
- Built-in active PFC, remote On/Off, remote sense, power good signal and 12VSB (6W) or optional 5VSB (6W)
- Class I or Class II (double isolation) configuration with universal AC input voltage range
- High efficiency up to 94.0%
- Extreme low temperature cold start at -40°C
- Approval for Pollution Degree 3
- Major safety approvals include IEC/EN/UL 60950-1,IEC/EN/UL 62368-1, IEC/EN 60335-1,IEC/EN 61558-1 and IEC/EN 61558-2-16
- Earth leakage current < 0.75mA
- Glow wire test 550°C, 750°C (te – ti ≤ 2s), 850°C
- Input no load power consumption < 0.5W
| Model Name |
Phase |
PFC |
Output Voltage |
Output Current |
Output Power |
Input Voltage Range |
Dimensions (L x W x H) |
Download datasheet |
| PJH-24V300WBCA |
Phase I |
|
24V |
12.5A |
300W |
90-264Vac |
127 x 76.2 x 35.8 mm |
|

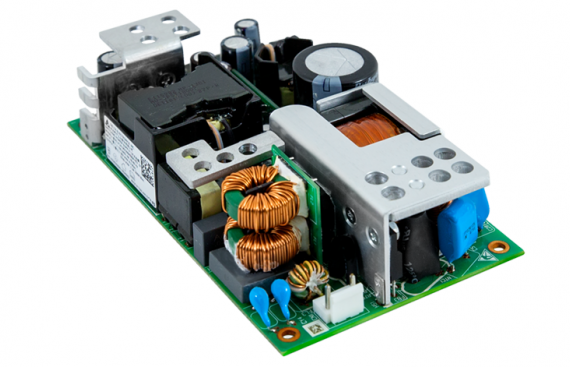

| PJH-36V300WBCA |
Phase I |
|
36V |
8.3A |
300W |
90-264Vac |
127 x 76.2 x 35.8 mm |
|
