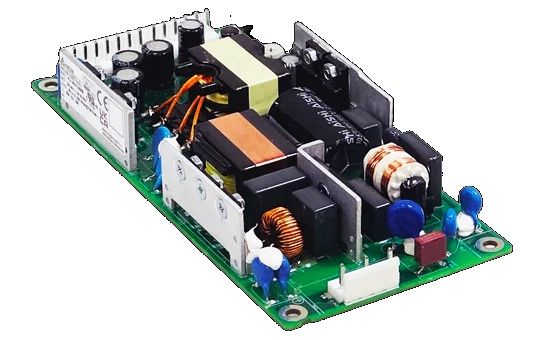

Delta PJ series
PJ-24V150WDRA
200% Power Boost. Comply with JAPAN DEN-AN. Built-in Remote ON/OFF. Low profile design. Low Inrush Current / Low Leakage Current. High efficiency and power factor to conserve energy. Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A. Conformal coating on PCBA to protect against chemical and dust pollutants. Versatile configuration options: Open Frame & Enclosed.
Main specifications PJ-24V150WDRA:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Output Current: 6.3A
Output Voltage: 24V
Output Voltage Adjustment Range: 21.6-26.4 Vdc
Output Power: 151.2W
Dimensions (LxWxD): Open frame - 160 x 75 x 27 mm (6.30" x 2.95" x 1.06")
Enclosed - 188 x 85 x 47 mm (7.40" x 3.35" x 1.85")
Unit Weight: Open frame - 0.25 kg (0.55 lb)
Enclosed - 0.46 kg (1.01 lb)
