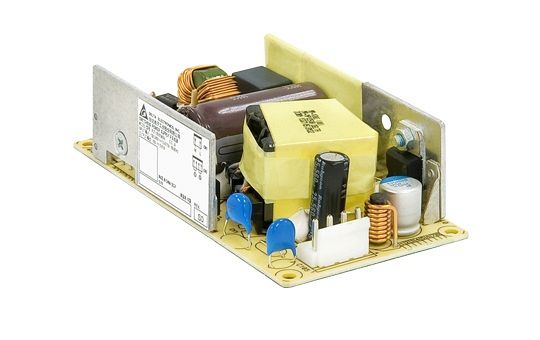

Delta PJT series
PJT-12V65WBAA
Universal AC input voltage. Standard industrial foot print of 2” x 4”. Low leakage current < 0.1mA. Convection cooled operating temperature range from -10°C to +70°C. High MTBF > 700,000 hrs as per Telcordia SR-332. Multiple connector source options.
Main specifications pjt-12v65wbaa:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 12V
Nominal Output Current: 5A
Output Power: 60W
Dimensions (L x W x D) : 101.6 x 50.8 x 30 mm
Unit Weight : 0.13 kg (0.29 lb)
