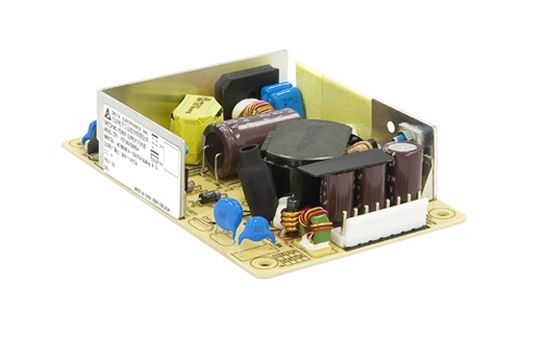

Delta PJT series
PJT-18V100WBAA
Universal AC input voltage. Standard industrial foot print of 3” x 5”. Low leakage current < 0.1mA. Convection cooled operating temperature range from -10°C to +70°C. High MTBF > 700,000 hrs as per Telcordia SR-332. Multiple connector source options.
Main specifications pjt-18v100wbaa:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 18V
Nominal Output Current: 5.5A
Output Power: 100W
Dimensions (L x W x D) : 127 x 76.2 x 31 mm
Unit Weight : 0.21 kg (0.46 lb)
